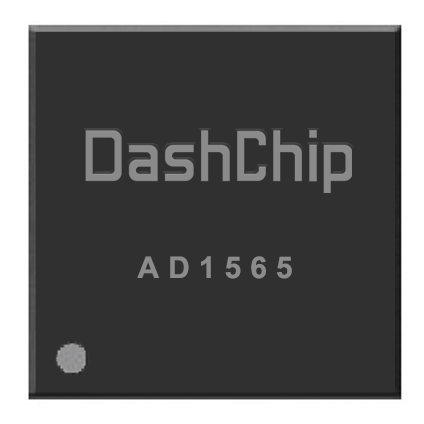

AD1565
High-performance audio DSP
Xtensa HiFi5 Audio DSP core, main frequency 504MHz Built-in 32-bit MCU core, main frequency 264MHz
Built-in 3168 KB on-chip high-speed SRAM
I2S supports 5 sets of TX and RX, supporting 80-channel audio input and output
Supports four-channel high-performance ADC Differential SNR 111dBA (Typ)
Supports two-channel high-performance DAC Differential SNR 113dBA (Typ)
Built-in four-channel stereo ASRC (THD+N<-140dBm)
Supports AI acceleration instructions, providing NN-LIB
Supports multiple peripheral interfaces such as SPI, UART, I2C, GPIO, etc.
Supports UAC 2.0
